Multi-Functional PVC profile panel machine – Your All-in-One Solution for Windows, Ceilings, Walls & Trunking
Comrise Machinery Co., Ltd, introduces our flagship Multi-Functional PVC profile panel machine, a versatile system designed to manufacture a wide range of building and construction profiles. By simply changing the mold and calibration tools, this single production line transforms to create:
PVC Window Profiles
PVC Ceiling Panels
PVC Wall Panels
PVC Cable Trunking
Built with high-quality components and backed by our experienced technical team, this machine ensures fast setup, stable mass production, and high profitability for our clients.
PVC Window Profile Machine
Application: Frames, sashes, and casement profiles for residential and commercial windows.
|
Feature
|
Performance Advantage
|
|
Multi-Chamber Extrusion
|
Produces complex hollow structures for thermal insulation and strength.
|
|
Precise Calibration
|
Vacuum sizing sleeves ensure accurate dimensions and corner welding compatibility.
|
|
High Stiffness
|
Optimized cooling ensures profiles maintain shape without warping over time.
|
|
Surface Finish
|
Excellent surface quality, readv for lamination or co-extrusion (optional)
|
PVC Ceiling Machine
Application:Interior decorative panels for home, office, and commercial ceilings.
|
Feature
|
Performance Advantage
|
|
Wide Panel Output
|
Capable of producing panels up to 300 mm width with stable extrusion.
|
|
Tongue & Groove Design
|
Precision mold ensures perfect click-lock edges for easy installation.
|
|
Smooth or Embossed Surface
|
Optional roller calibrators create wood grain or stone textures.
|
|
High Line Speed
|
Optimized cooling allows speeds up to 4–6 m/min for high-volume production.
|
PVC Wall Panel Machine
Application:Wall cladding for bathrooms, kitchens, and commercial interiors.
|
Feature
|
Performance Advantage
|
|
Large Width Capability
|
Handles wide panels (up to 600 mm) with consistent thickness.
|
|
Foam or Solid Core
|
Compatible with both rigid PVC and foamed PVC formulas for lightweight panels.
|
|
Scratch-Resistant Surface
|
Hard-wearing outer layer protects against daily wear and tear.
|
|
Easy Cleaning
|
Smooth surface finish prevents dust accumulation and allows easy maintenance.
|
PVC Cable Trunking Machine
Application: Electrical wire management in homes, offices, and industrial facilities.
|
Feature
|
Performance Advantage
|
|
Precise Channel Dimensions
|
Accurate internal dimensions ensure wires fit snugly without bending.
|
|
Snap-Fit Cover Design
|
Molded cover clicks securely into place and removes easily for maintenance.
|
|
Flame Retardant Compatibility
|
Processes fire-resistant PVC compounds to meet safety standards.
|
|
High Output
|
Continuous extrusion at high speed minimizes production costs per meter.
|
Why Choose Our Multi-Functional Line ?
One PVC profile panel machine, Four Products:Drastically reduces capital investment compared to buying four separate lines.
Fast Mold Changeover:Switch between product types in under 30 minutes.
Expert Commissioning:Our engineers ensure the line is running perfectly within 5 days of arrival.
Proven Reliability:Over 60% of our customers place repeat orders after experiencing our machine stability.
High Yield & Low Scrap:>98% first-quality output even during initial production runs.
Technical Specifications (Standard Configuration)
|
Parameter
|
Specification
|
|

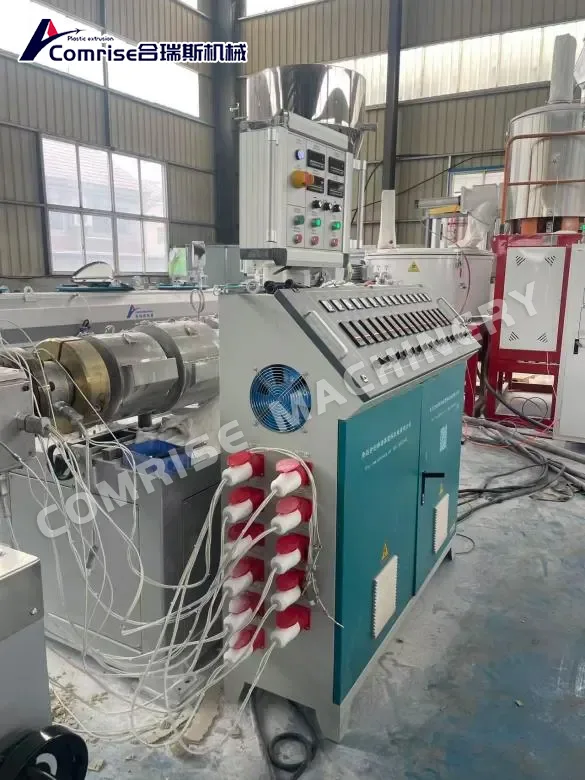

Extruder Type
|
Conical Twin-Screw Extruder (SJSZ-65/132 or 80/156)
|
|
Screw Diameter
|
65 mm / 80 mm
|
|
Max. Output
|
180 – 350 kg/h (depending on formula and product)
|
|
Profile Width Range
|
40 mm – 600 mm
|
|
Line Speed
|
0.5 – 6 m/min
|
|
Total Installed Power
|
55 – 90 kW
|
|
Control System
|
PLC + Touchscreen HMI
|
Customer Success Story: The Repeat Order
A returning customer recently purchased this multi-functional line to expand their product range. Our technical team completed installation and commissioning in just 5 days. The client is now producing three different product types from a single line.
"The flexibility of this machine is incredible. We switched from window profiles to cable trunking in under an hour. The quality is consistent across all products, and the after-sales support is top-notch. That’s why we ordered another line."
— Production Director, Returning Client
Ready to Expand Your Product Range?
Contact us today for a customized solution and quotation.
